Problem

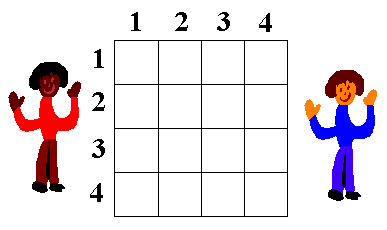

Robots can move around the 4 x 4 board below. They can do so at the rate of one square per second. Start the red robot at (1,1) and give it instructions (square by square) to move in a square of side length 3 around the square (2,2).

Now start the blue robot at (4,4) and write instructions for it to move in a square of side length 3 around the square (3,3).

If the red and blue robots both start at the same time from their respective corners, which squares can they both be made to occupy at the same time?

What is this problem about?
The aim of this problem is to explore grid references and to use them in a practical situation.

Achievement Objectives
Geometry (Level 4)
- specify location, using grid references

Mathematical Processes
- devise and use problem solving strategies to explore situations mathematically (guess and check, make a drawing, use equipment)

Resources
grid paper
counters
Blackline master of the problem (English)
Blackline master of the problem (Maaori)

Specific learning outcomes
The children will be able to:
- follow grid references
- work systematically

Teaching sequence

1. Introduce the 2 robots and set the scene for the problem.
2. Pose the problem to pairs of children.
3. As the children work on the problem check that they are correctly using grid references.
   What position on the grid is the robot now?
   Which reference do you give first? Is it always in that order?
4. Share solutions.

Extension to the problem
Using a 5 x 5 grid make up your own robot problem. Write it up so that others can solve it.

Solution to the problem
There are two possible ways for the red robot to move. It could go (1,1), (1,2), (1, 3), (2, 3), (3, 3), (3, 2), (3, 1), (2, 1) and back to (1,1). We’ll deal with the other case in a minute.

Similarly there are two ways for the blue robot to move. Suppose that it goes, go (4,4), (4,3), (4, 2), (3, 2), (2, 2), (2, 3), (2, 4), (3, 4) and back to (4,4). If you compare the different grid references you will see that the two robots are never on the same square at the same time.

But the blue robot might go (4,4), (3,4), (2, 4), (2, 3), (2, 2), (3, 2), (4, 2), (4, 3) and back to (4,4). In this case the two robots are on the same square at the same time twice – the squares (2,3) and (3,2).

If the red robot goes round its square the other way (anti-clockwise) it will meet up twice with the blue robot if the blue robot goes clockwise. Then they meet on the squares (3,2) and (2,3). If the blue robot insists on going anticlockwise, then they won’t meet up at all.
